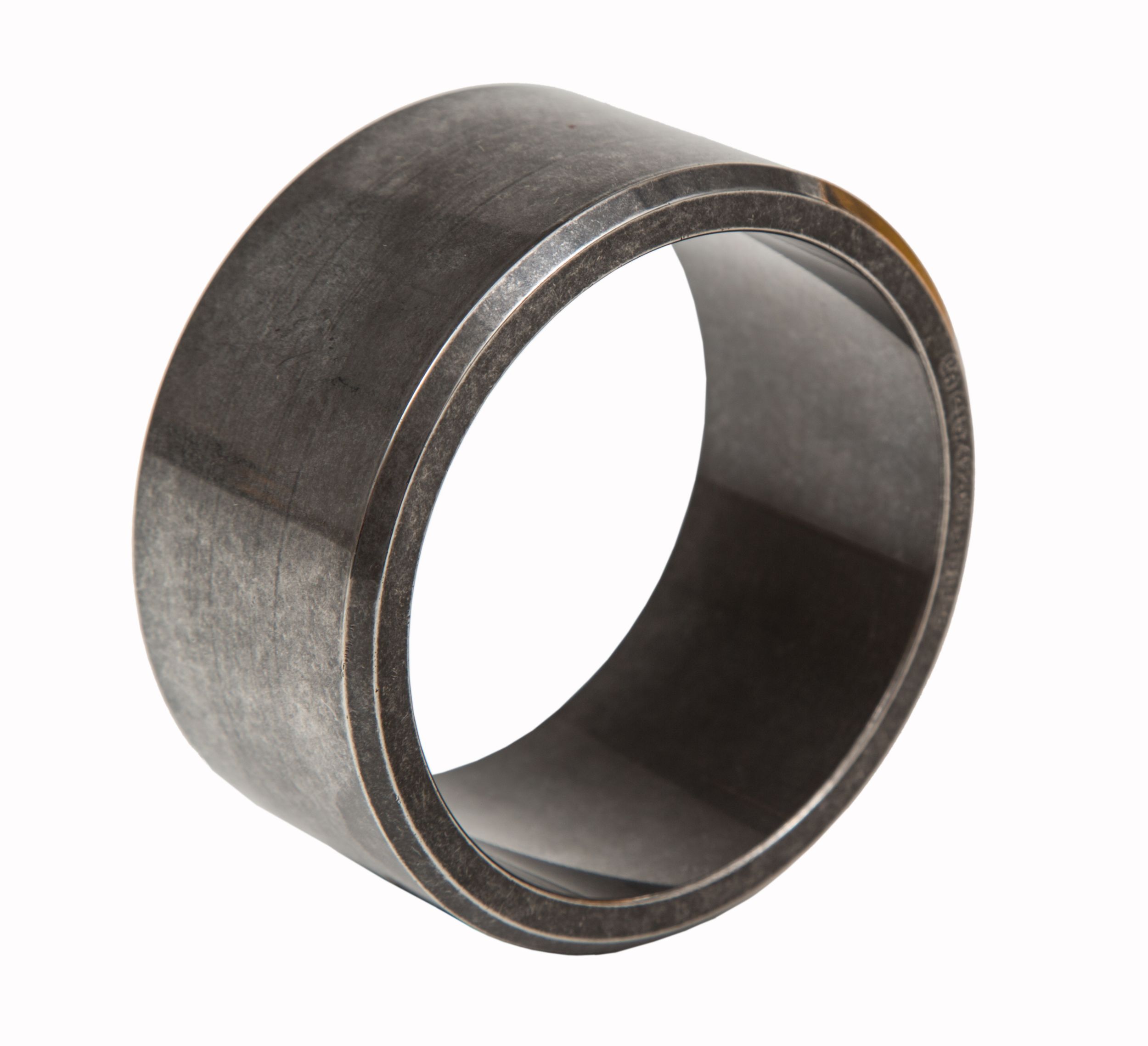

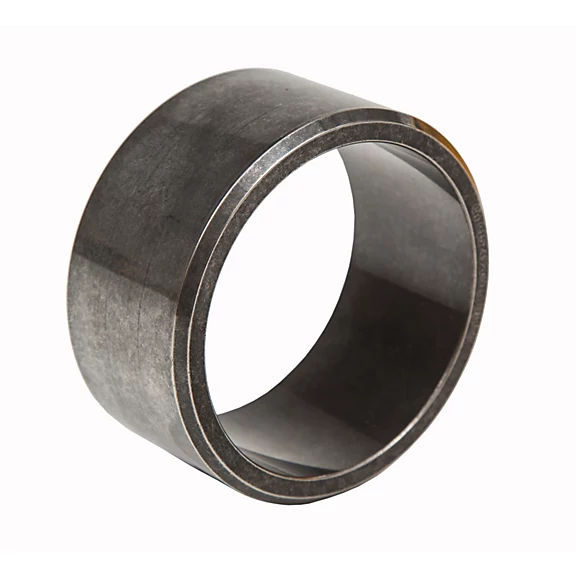

1J-9147: Sleeve Bearing (bushing)

Product Photos

1J-9147: Sleeve Bearing (bushing) 1J9147 buy
Price ¥842
Lead Time TBC
Availability:ChinaRest

Key Details

OEM / Part No.1J-9147
ManufacturerCaterpillar
CategorySleeve Bearings
Country of OriginOrigin on request
Weight0.4 kg
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

1J-9147 Caterpillar Sleeve Bearing (bushing) is made of Steel,STEEL,Alloy Zinc,Low Alloy Steel. The specified material for this part is Steel,STEEL,Alloy Zinc,Low Alloy Steel.

Specifications

Inside Diameter (mm)54,0
Inside Diameter (in)2,11
Outside Diameter (mm)64,0
Outside Diameter (in)2,5
Overall Length (mm)50,01
Overall Length (in)1,969
Grease PassageNO GREASE HOLE IN BEARING
MaterialСталь
TypeSTRAIGHT SLEEVE
Cross HolesНет
Approximate Overall Length (mm)50,0
External GrooveНет
Internal GrooveДа
Approximate Inside Diameter (mm)54,0
Approximate Outside Diameter (mm)64,0
Sleeve Outside Diameter (in)2,503
Sleeve Outside Diameter (mm)63,576
Sleeve Inside Diameter (in)2.112
Unique FeaturesNo
Sleeve Inside Diameter (mm)53.657

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.

Compatible Models

Wheel Scraper630A
