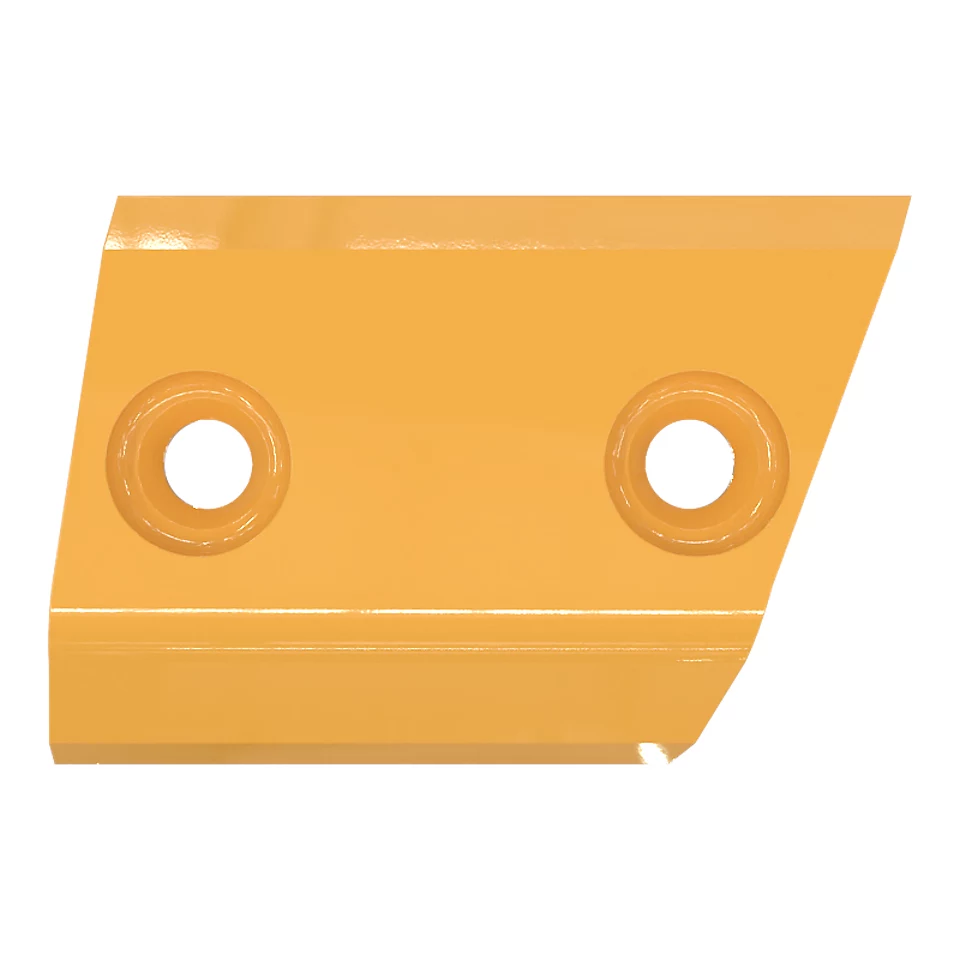

300-5946: Top Mounted Wear Plate Edge Protection
Product Photos
Price
¥2402
Lead Time
TBC
Availability:ChinaRest
Key Details
| OEM / Part No. | 300-5946 |
|---|---|
| Manufacturer | Caterpillar |
| Category | Top Covers |
| Country of Origin | Origin on request |
| Weight | 15.3 kg |
| Dimensions | — |
| Unit of Measure | pcs |
| Condition | New original part |
Product Description
300-5946 Caterpillar Top Mounted Wear Plate Edge Protection is made of Boron Steel. The specified material for this part is Boron Steel.
Specifications
| Thickness (mm) | 25,4 |
|---|---|
| Length (mm) | 325,5 |
| End Width (mm) | 252,0 |
| Thickness (in) | 1,0 |
| Length (in) | 12,8 |
| Depth (in) | 9,921 |
| Hole Spacing (in) | 7,913 |
| Width (in) | 14,335 |
| Wear Or Durability | Standard |
| Width (mm) | 364,1 |
| Bevel Angle | 35,0 |
| Position | LH |
| Spade Angle | 15,7 |
| Hole Quantity | 2 |
| Material | Boron Steel |
| Attachment Method | Bolt-On |
| Depth (mm) | 252,0 |
| Hole Spacing (mm) | 201,0 |
Delivery & Payment
Отгрузка
Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.
Оплата
Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.
Warranty
Warranty and delivery terms are confirmed on request.
