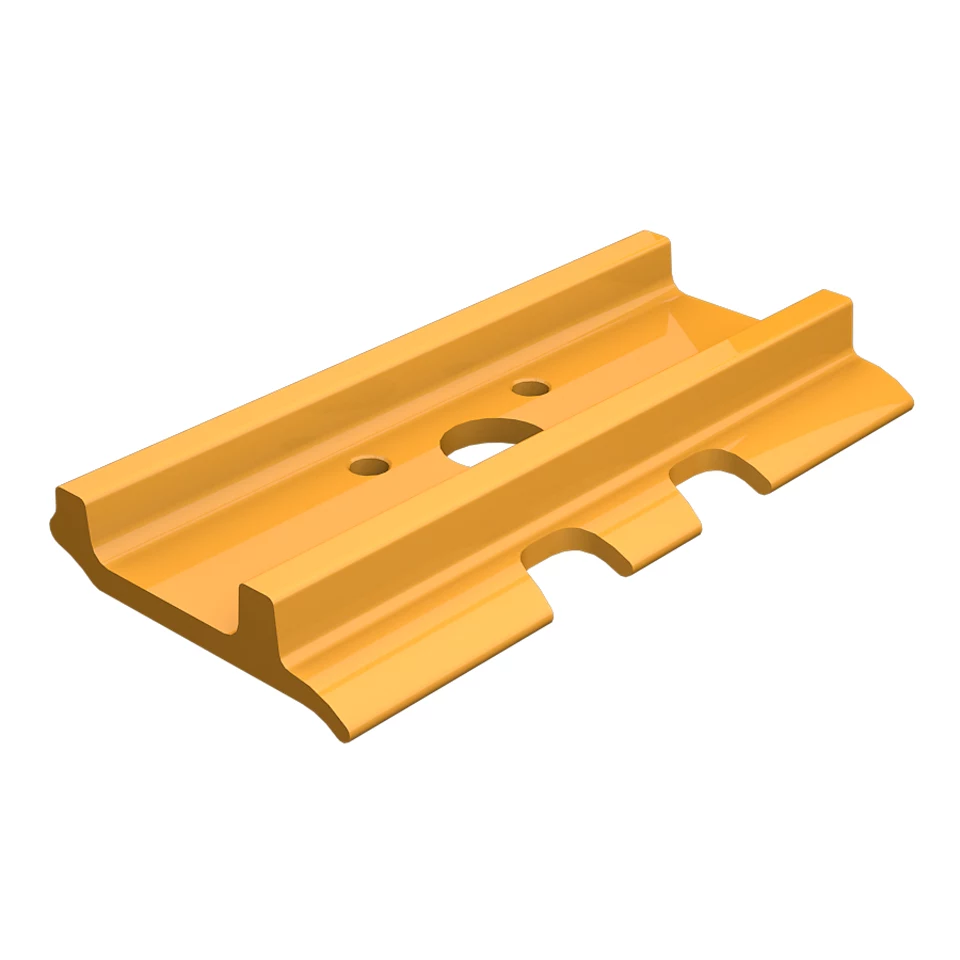

301-2283: Track Shoe
Product Photos
Price
Price on request
Lead Time
—
Key Details
| OEM / Part No. | 301-2283 |
|---|---|
| Manufacturer | Caterpillar |
| Category | Undercarriage |
| Country of Origin | Origin on request |
| Weight | — |
| Dimensions | — |
| Unit of Measure | pcs |
| Condition | New original part |
Product Description
301-2283 Caterpillar Track Shoe is listed in the Undercarriage category. Use the exact part number to verify fitment, specifications, and current availability before ordering.
Specifications
| Shoe Width (in) | 25,591 |
|---|---|
| Shoe Type | Двойной грунтозацеп, для тяжелых условий эксплуатации, с центральным отверстием |
| Shoe Bolt Hole Spacing A | 76.2 |
| Shoe Bolt Hole Spacing B | 184.15 |
| Clipped | No |
| Shoe Bolt Hole Spacing C | 209.55 |
| Hole Type | Round |
| Joint Type | Regular |
| Bolt Hole Diameter (in) | 1.22 |
| Shoe Section 1e Spec | 1E4306 |
| Bolt Hole Diameter (mm) | 31 |
| Plate Thickness (mm) | 22 |
| Shoe Width (mm) | 650,0 |
| Plate Thickness (in) | 0.866 |
| Arm | No |
| Number Of Grousers | Double |
| Material | Boron Steel |
| Track Bolt Thread | M30 |
| Uc System | HD |
Delivery & Payment
Отгрузка
Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.
Оплата
Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.
Warranty
Warranty and delivery terms are confirmed on request.
Compatible Models
Mobile Hydraulic Power Unit385C L
Excavator390D, 390D L, 390F, 390F L, 385C, 385C L
