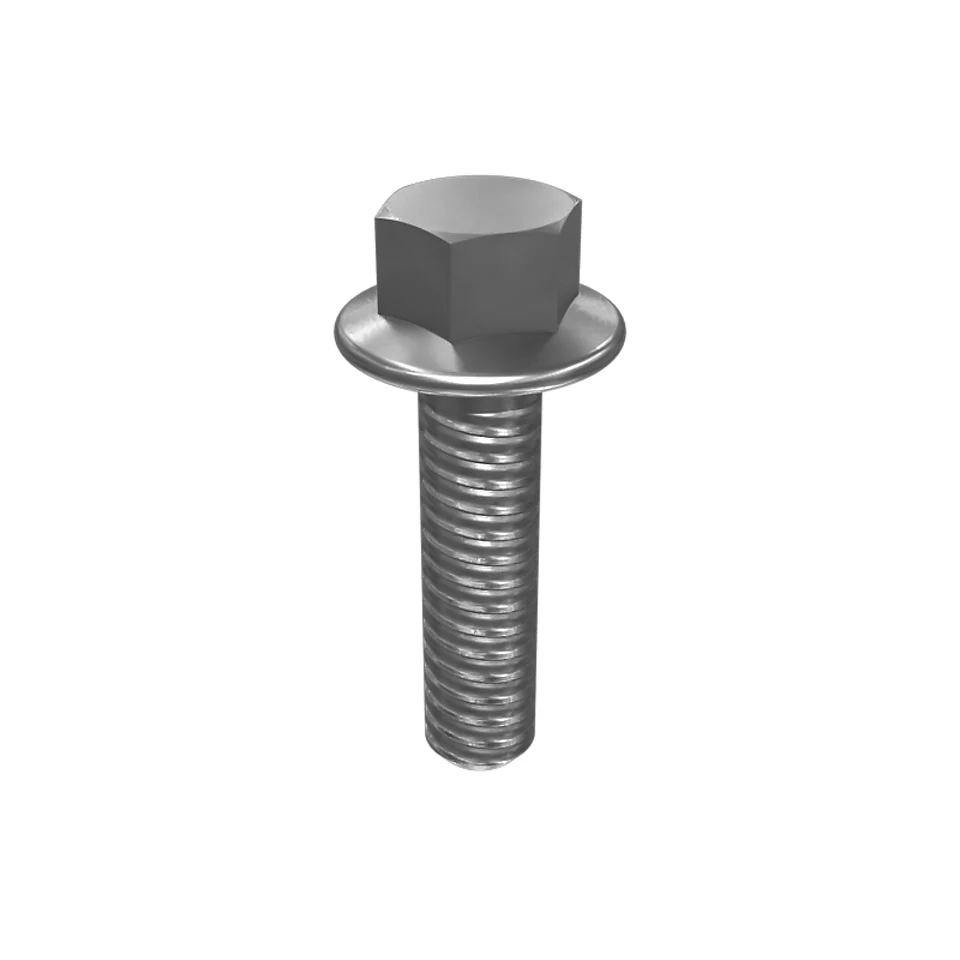

438-0584: Flange Head Bolt

Product Photos

438-0584: Flange Head Bolt 4380584 buy
Price Price on request
Lead Time —

Key Details

OEM / Part No.438-0584
ManufacturerCaterpillar
CategoryFasteners
Country of OriginOrigin on request
Weight—
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

438-0584 Caterpillar Flange Head Bolt is made of STEEL,Carbon Steel,Alloy Zinc. The specified material for this part is STEEL,Carbon Steel,Alloy Zinc.

Specifications

Thread Size Dia X Pitch (mm)M5x0.8
Bolt Length (in)0.787
Flange Diameter (mm)11,4
Bolt Length (mm)20,0
Bolt TypeHex Flange Head
Flange TypeSmooth Flange Face
CoatingZinc
Grip Length (in)0,079
Head Height (mm)5,6
Grip Length (mm)2,0
Drive (mm)7,0
ThreadCoarse
MaterialЦинковый сплав,Углеродистая сталь,СТАЛЬ
Thread Size In Tpi (in)M5-0.8
Material DescriptionISO 898-1 Class 8.8. Head Marking - 8.8 (800 MPa Ultimate Tensile Strength)
Thread Size (in)0
Thread Size (mm)M5
Class Or GradeISO 898-1 Class 8.8
Hand Of ThreadRH

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.

Compatible Models

ГенераторSR500
Генераторные установкиC15
