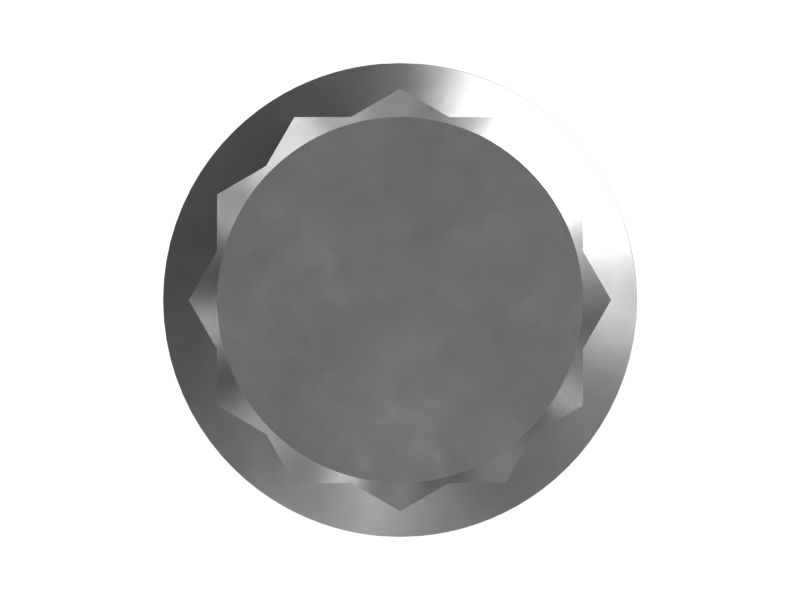

487-6621: M24-2 X 140mm 12-point Head Bolt

Product Photos

487-6621: M24-2 X 140mm 12-point Head Bolt 4876621 buy
Price ¥1170
Lead Time 5 days
Availability:ChinaRest

Key Details

OEM / Part No.487-6621
ManufacturerCaterpillar
CategoryFasteners
Country of OriginOrigin on request
Weight0.5 kg
Dimensions0.16 Х 0.038 Х 0.038
Unit of Measurepcs
ConditionNew original part

Product Description

487-6621 Caterpillar M24-2 X 140mm 12-point Head Bolt is made of STEEL,Low Alloy Steel,Alloy Zinc. The specified material for this part is STEEL,Low Alloy Steel,Alloy Zinc.

Specifications

TypeБолт с 12-гранной головкой
Bolt Length (in)5.512
MaterialСТАЛЬ,Цинковый сплав,Низколегированная сталь
Bolt Length (mm)140,0
Bolt Type12 Point Head
CoatingZinc
Thread Size Dia X Pitch (mm)M24x2
Grip Length (in)4,331
Grip Length (mm)110,0
Flange Diameter (mm)39,0
Thread Size (in)0
Thread Size (mm)M24
Class Or GradeISO 898-1 Class 10.9
Hand Of ThreadRH
Locking FeatureNone
