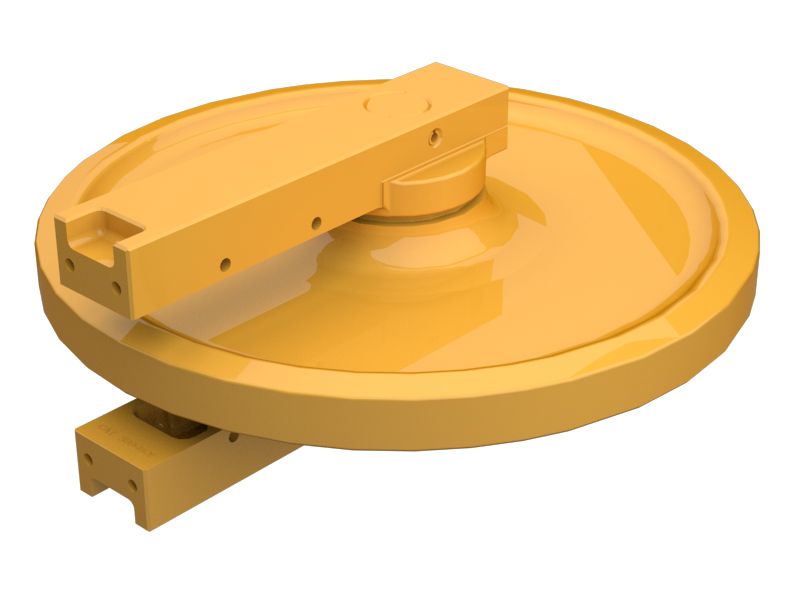

497-8955: Idler Group-relieved Tread Idler

Product Photos

497-8955: Idler Group-relieved Tread Idler 4978955 buy
Price ¥12265
Lead Time TBC
Availability:ChinaRest

Key Details

OEM / Part No.497-8955
ManufacturerCaterpillar
CategoryIdler Groups
Country of OriginOrigin on request
Weight130.3 kg
Dimensions0.541 Х 0.668 Х 0.719
Unit of Measurepcs
ConditionNew original part

Product Description

497-8955 Caterpillar Idler Group-relieved Tread Idler is listed in the Idler Groups category. Use the exact part number to verify fitment, specifications, and current availability before ordering.

Specifications

Tread Diameter (mm)495,4
Tread Diameter (in)19,504
Flange TypeЦентральный фланец
Shaft Diameter (in)1,99
Flange Diameter (in)22,62
Shaft Diameter (mm)50,0
Flange Diameter (mm)575,0
ApplicationStandard Application
Machine SideInterchangeable
Shaft OD (in)2.24
Mounting Cap Bolt Thread SizeM10
Shaft OD (mm)56.9
Center Flange Width (mm)35
MaterialSealants / Adhesives Adhesive
Uc SystemABRASION
Shaft Protrusion Length (mm)56.8
Center Flange Width (in)1.378
Shaft Protrusion Length (in)2.236
Idler Rim Width (in)2.449
Center Flange Diameter (mm)574.5
Idler Rim Width (mm)62.21
Tread TypeConventional Tread
Shaft Length (mm)228
Bearing Mounting Length (mm)305
Shaft Length (in)8.976
Bearing Mounting Length (in)12.008
Center Flange Diameter (in)22.618

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.

Compatible Models

Track-Type TractorD3K2 XL, D4K2 LGP, D2, D4K2 XL, D1, D3K2 LGP
