Caterpillar
648-3879: Link AssemblyPrice¥59697
Lead time90 days

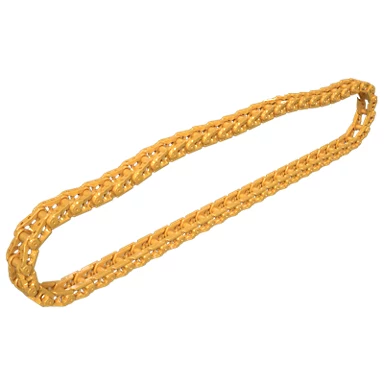

500-1130: LINK AS-TRAC
Product Photos
Price
Price on request
Lead Time
—
Key Details
| OEM / Part No. | 500-1130 |
|---|---|
| Manufacturer | Caterpillar |
| Category | Link Assemblies |
| Country of Origin | Origin on request |
| Weight | 1085.02 kg |
| Dimensions | 1.519 Х 1.519 Х 0.249 |
| Unit of Measure | pcs |
| Condition | New original part |
Product Description
500-1130 Caterpillar LINK AS-TRAC is listed in the Link Assemblies category. Use the exact part number to verify fitment, specifications, and current availability before ordering.
Specifications
| Pin Retention System | PPR2 |
|---|---|
| Track Pitch (mm) | 215,9 |
| Track Pitch (in) | 8,5 |
| Link Outside Spread (mm) | 205.1 |
| Shoe Bolt Hole Spacing A (in) | 2.685 |
| Rail To Bushing OD (mm) | 33 |
| Shoe Bolt Hole Spacing C (in) | 7.205 |
| Rail To Bushing OD (in) | 1.299 |
| Bushing OD (in) | 2.926 |
| Bolt Hole Diameter (mm) | 26.39 |
| Link Outside Spread (in) | 8.075 |
| Number Of Sections | 52 |
| Bushing OD (mm) | 74.32 |
| Track Bolt Thread | 1 |
| Uc System | HDXL |
| Rail To Pin Boss OD (mm) | 38.7 |
| Shoe Bolt Hole Spacing A | 68.2 |
| Shoe Bolt Hole Spacing B | 144.9 |
| Grease Track Type | GLT4 |
| Shoe Bolt Hole Spacing C | 183 |
| Seal And Lube Type | SALT |
| Rail To Pin Boss OD (in) | 1.524 |
| Wear Sensor | No |
| Bolt Hole Diameter (in) | 1.039 |
| Pin Length (mm) | 249 |
| Link Inside Spread Sprocket (mm) | 88.9 |
| Shoe Bolt Hole Spacing B (in) | 5.705 |
| Rotating Bushing Track (rbt) | No |
| Link Inside Spread Sprocket (in) | 3.5 |
| Link Height (mm) | 130.05 |
| Pin Length (in) | 9.803 |
| Link Inside Spread Roller (mm) | 104.9 |
Delivery & Payment
Отгрузка
Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.
Оплата
Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.
Warranty
Warranty and delivery terms are confirmed on request.
Compatible Models
Excavator349D2 L, 349D2, 352, 352F XE VG, 350, 352F, 349F L, 349
Генераторные установки3512
