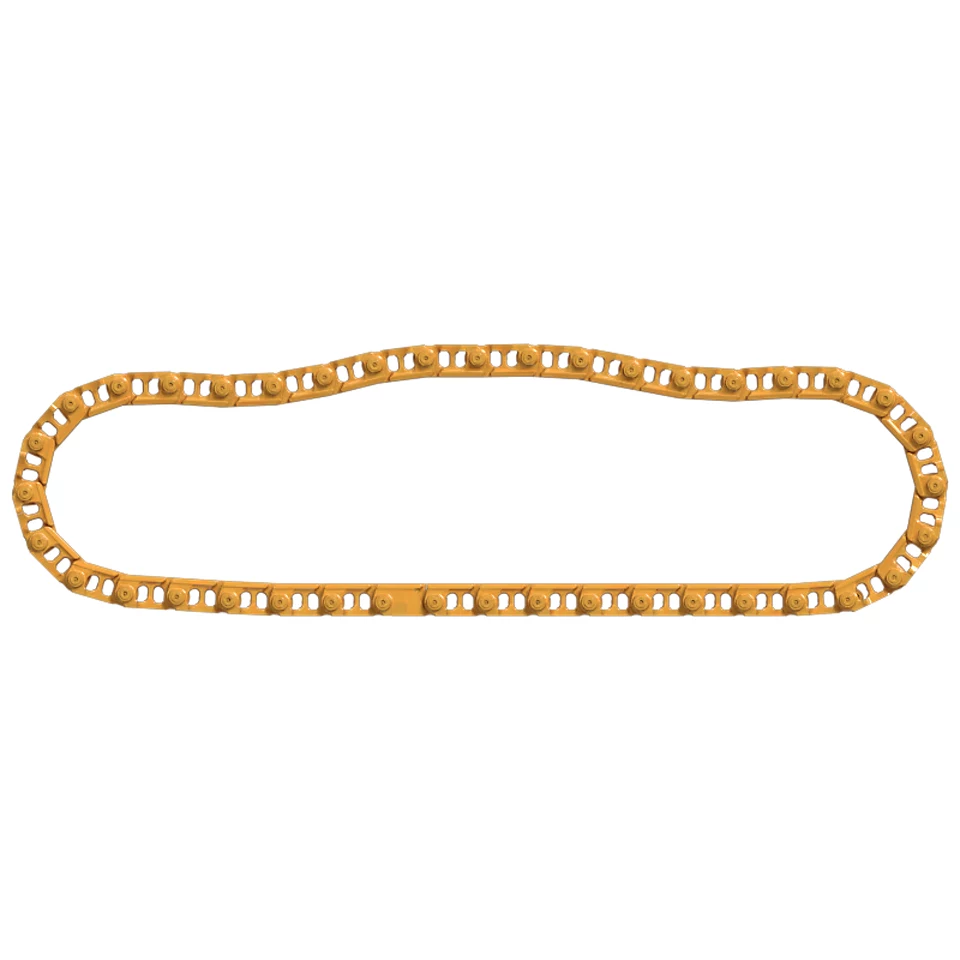

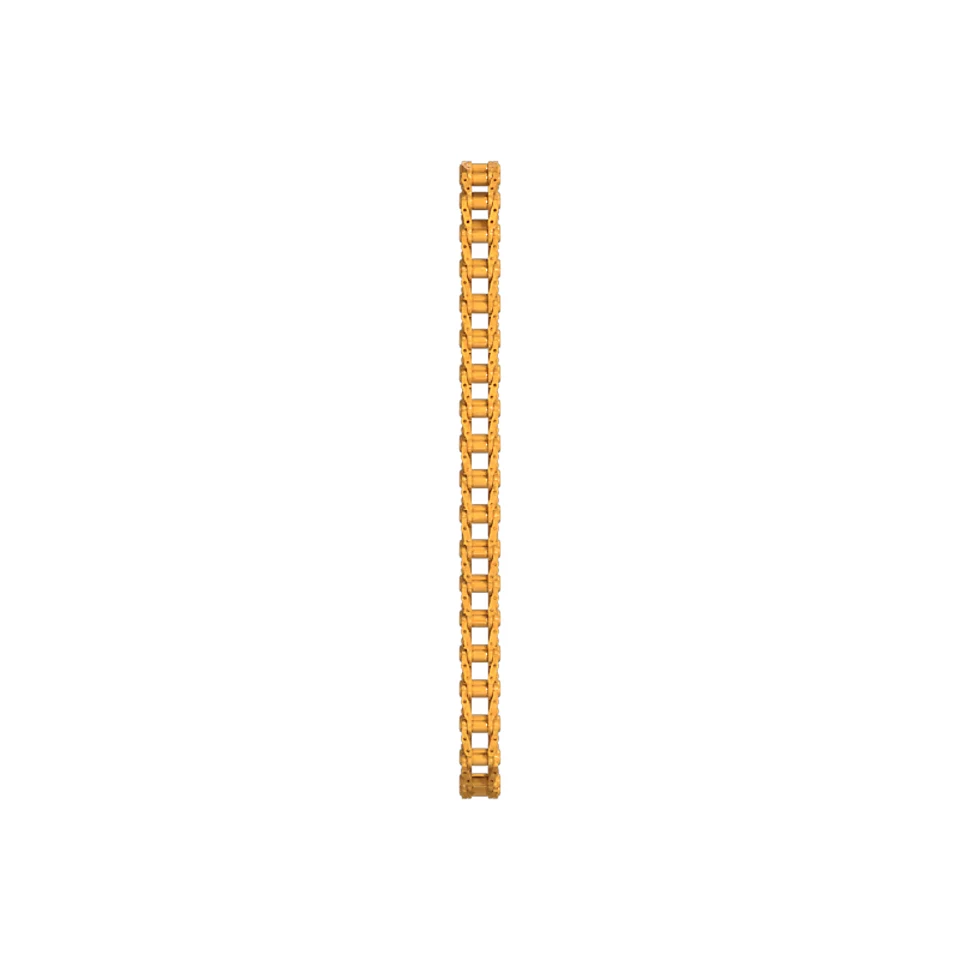

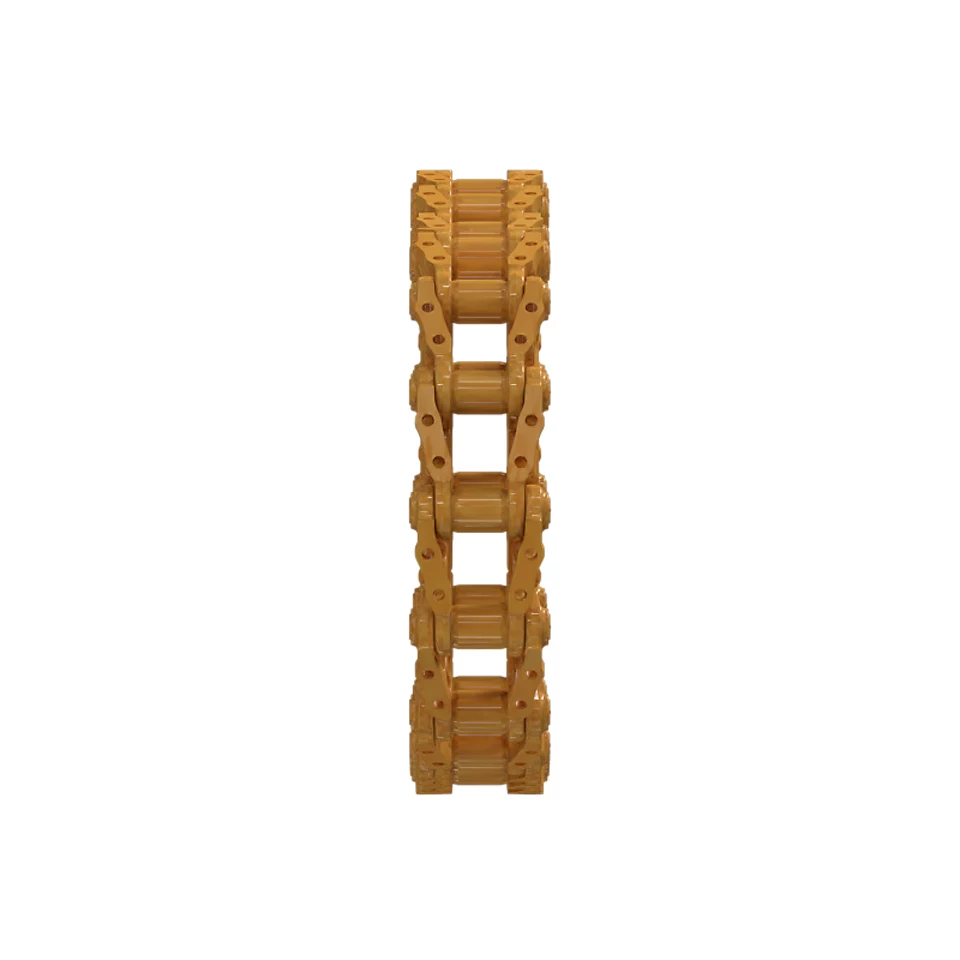

504-4803: Link Assembly

Product Photos

504-4803: Link Assembly 5044803 buy
Price Price on request
Lead Time —

Key Details

OEM / Part No.504-4803
ManufacturerCaterpillar
CategoryLink Assemblies
Country of OriginOrigin on request
Weight—
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

504-4803 Caterpillar Link Assembly is listed in the Без категории category. Use the exact part number to verify fitment, specifications, and current availability before ordering.

Specifications

Track Pitch (mm)215,9
Track Pitch (in)8,5
Bolt Size (mm)7/8
Number Of Track Sections40,0
Pin Retention SystemPress Fit
Link Outside Spread (mm)200.7
Shoe Bolt Hole Spacing A (in)3
Rail To Bushing OD (mm)38.9
Shoe Bolt Hole Spacing C (in)7.248
Rail To Bushing OD (in)1.531
Bushing OD (in)3.117
Bolt Hole Diameter (mm)23.2
Link Outside Spread (in)7.902
Number Of Sections40
Bushing OD (mm)79.16
Track Bolt Thread0.875
Uc SystemGD
Rail To Pin Boss OD (mm)48.3
Shoe Bolt Hole Spacing A76.2
Shoe Bolt Hole Spacing B146
Grease Track TypeNot Applicable
Shoe Bolt Hole Spacing C184.1
Seal And Lube TypeSALT
Rail To Pin Boss OD (in)1.902
Wear SensorNo
Bolt Hole Diameter (in)0.913
Pin Length (mm)251
Link Inside Spread Sprocket (mm)101.1
Shoe Bolt Hole Spacing B (in)5.748
Rotating Bushing Track (rbt)No
Link Inside Spread Sprocket (in)3.98
Link Height (mm)135
