504-4804: Link Assembly

Product Photos

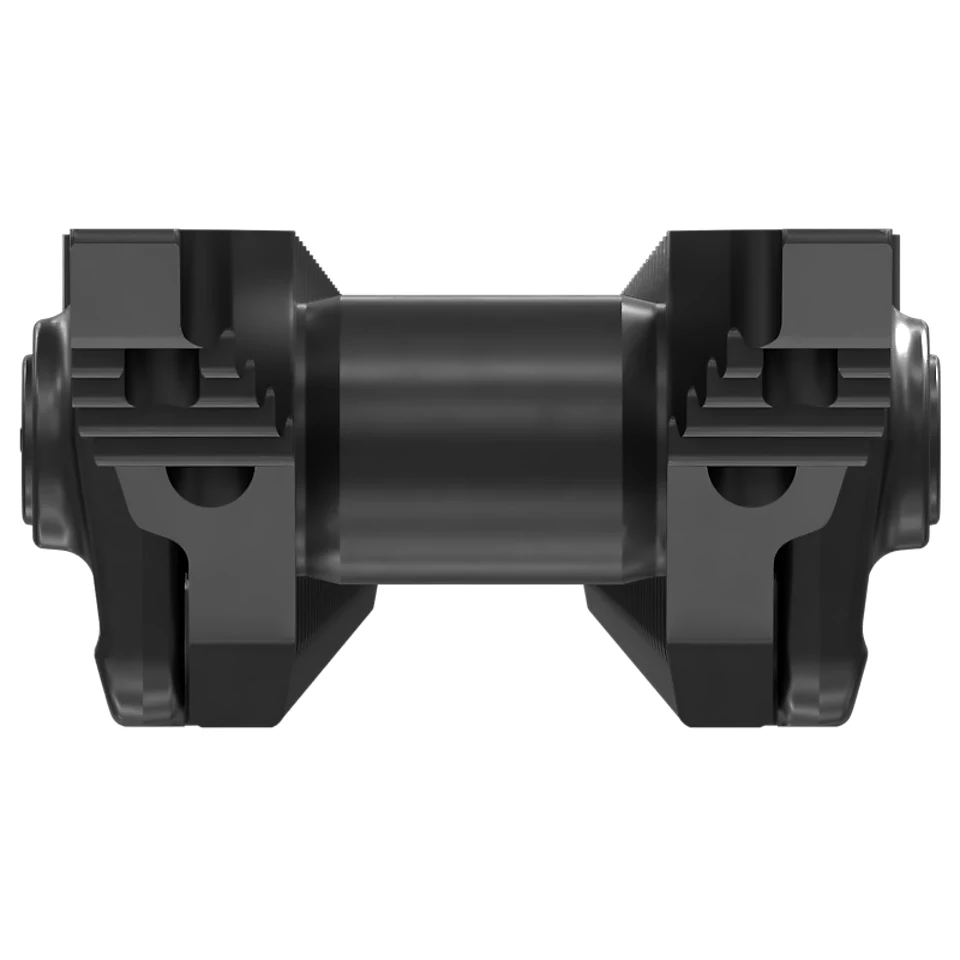

504-4804: Link Assembly 5044804 buy
Price Price on request
Lead Time —

Key Details

OEM / Part No.504-4804
ManufacturerCaterpillar
CategoryUndercarriage
Country of OriginOrigin on request
Weight—
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

504-4804 Caterpillar Link Assembly is listed in the Без категории category. Use the exact part number to verify fitment, specifications, and current availability before ordering.

Specifications

Pin Retention SystemPress Fit
Track Pitch (mm)215,9
Track Pitch (in)8,5
Link Outside Spread (mm)200.8
Shoe Bolt Hole Spacing A (in)3
Rail To Bushing OD (mm)38.9
Shoe Bolt Hole Spacing C (in)7.251
Rail To Bushing OD (in)1.531
Bushing OD (in)3.117
Bolt Hole Diameter (mm)23.2
Link Outside Spread (in)7.906
Number Of Sections41
Bushing OD (mm)79.16
Track Bolt Thread0.875
Uc SystemGD
Rail To Pin Boss OD (mm)48.8
Shoe Bolt Hole Spacing A76.2
Shoe Bolt Hole Spacing B146.08
Grease Track TypeNot Applicable
Shoe Bolt Hole Spacing C184.18
Seal And Lube TypeSALT
Rail To Pin Boss OD (in)1.921
Wear SensorNo
Bolt Hole Diameter (in)0.913
Pin Length (mm)251
Link Inside Spread Sprocket (mm)101.2
Shoe Bolt Hole Spacing B (in)5.751
Rotating Bushing Track (rbt)No
Link Inside Spread Sprocket (in)3.984
Link Height (mm)135
Pin Length (in)9.882
Link Inside Spread Roller (mm)112.3
