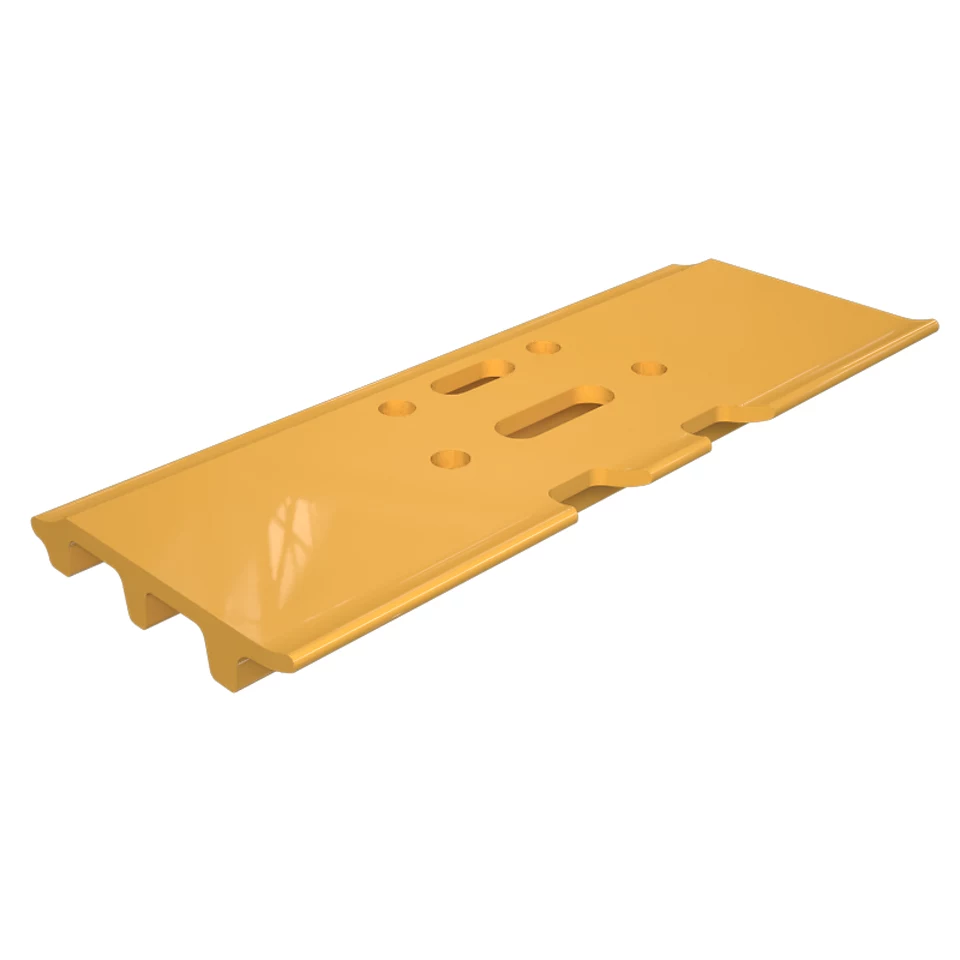

556-7262: Track Shoe
Product Photos
Price
Price on request
Lead Time
—
Key Details
| OEM / Part No. | 556-7262 |
|---|---|
| Manufacturer | Caterpillar |
| Category | Undercarriage |
| Country of Origin | Origin on request |
| Weight | — |
| Dimensions | — |
| Unit of Measure | pcs |
| Condition | New original part |
Product Description
556-7262 Caterpillar Track Shoe is listed in the Undercarriage category. Use the exact part number to verify fitment, specifications, and current availability before ordering.
Specifications
| Shoe Type | Тройные грунтозацепы |
|---|---|
| Shoe Width (in) | 23,622 |
| Shoe Width (mm) | 600,0 |
| Shoe Bolt Hole Spacing A | 76 |
| Shoe Bolt Hole Spacing B | 140 |
| Clipped | No |
| Shoe Bolt Hole Spacing C | 190 |
| Hole Type | Slotted |
| Joint Type | Regular |
| Bolt Hole Diameter (in) | 0.984 |
| Shoe Section 1e Spec | 1E1743 |
| Bolt Hole Diameter (mm) | 25 |
| Plate Thickness (mm) | 13 |
| Plate Thickness (in) | 0.512 |
| Arm | No |
| Number Of Grousers | Triple |
| Material | Boron Steel,Carbon Steel |
| Track Bolt Thread | M24 |
| Uc System | HD |
Delivery & Payment
Отгрузка
Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.
Оплата
Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.
Warranty
Warranty and delivery terms are confirmed on request.
Compatible Models
Excavator336D2, 336D2 GC, 336D2 L, 336, 336F, 336 GC
