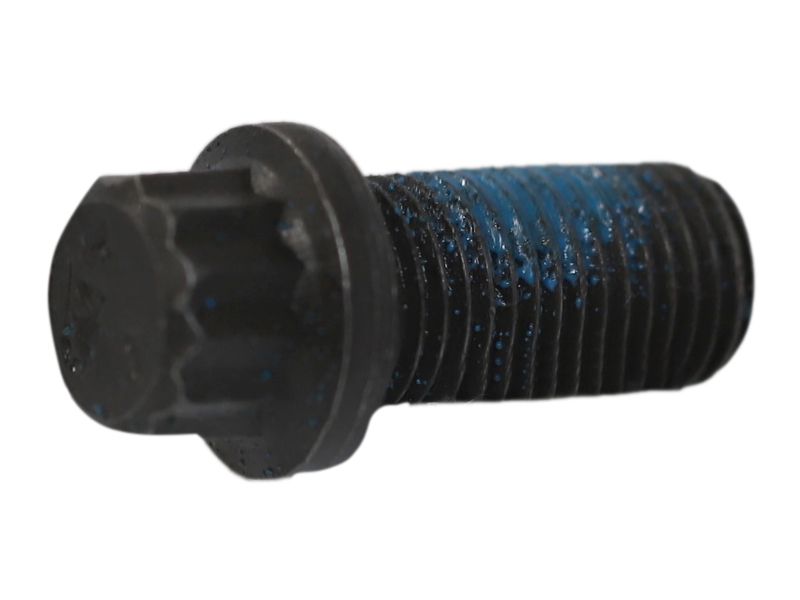

5V-2973: 3/8''-24 X 3/4'' 12-point Head Bolt

Product Photos

5V-2973: 3/8''-24 X 3/4'' 12-point Head Bolt 5V2973 buy
Price ¥38
Lead Time 5 days
Availability:ChinaRest

Key Details

OEM / Part No.5V-2973
ManufacturerCaterpillar
CategoryFasteners
Country of OriginOrigin on request
Weight0.01 kg
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

5V-2973 Caterpillar 3/8''-24 X 3/4'' 12-point Head Bolt is made of STEEL,Alloy Zinc,Nylon, 6, 6/12, 6/6 Plastic,Carbon Steel. The specified material for this part is STEEL,Alloy Zinc,Nylon, 6, 6/12, 6/6 Plastic,Carbon Steel.

Specifications

Bolt Length (in)0.75
TypeБолт с 12-гранной головкой
MaterialСТАЛЬ,Полиамид, 6, 6/12, 6/6,Углеродистая сталь,Цинковый сплав
Bolt Length (mm)19,05
Bolt Type12 Point Head
CoatingФосфат цинка и масло
Grip Length (in)0,094
Grip Length (mm)2,38
Flange Diameter (in)0,56
Thread Size (in)0.015
Thread Size (mm)0.375
Thread Size Dia X Pitch (mm)3/8x24
Class Or GradeCat/ASTM F2882 (170 ksi)
Hand Of ThreadRH
Locking FeatureNylon Patch

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.

Compatible Models

Валочно-пакетирующая машинаFB518
Wheel Dozer834B
Integrated ToolcarrierIT14G, IT18F, IT18B, IT14G2, IT28, IT28B, IT18
Winch528
Погрузчик с телескопической стрелойTH1055, TH62, TH63, TH1255, TH0642, RT80, TH0842, TL1055C, TH103, TL642C, RTC60, TL1255C, RT60, RT50SA, TH82, TH83, RT100, RT50, TL943C
Wheel LoaderG926, 916, 918F, 936E, G916, 926, 960F, 950B/950E, 988F II, 936, 926E, G936, 950B, 950E, 950F, 950F II
Экскаватор-погрузчик438, 436, 446D, 446B, 446, 426B, 438B, 416, 426, 428, 436B, 428B, 416B
Компактный колесный погрузчик920K, 914, 910, 914K, 914M, 914G, 918M, 910K, 910M, 914G2, 920
Skidder525, 518, 515, 528B, 528, 518C, 530B, 508
