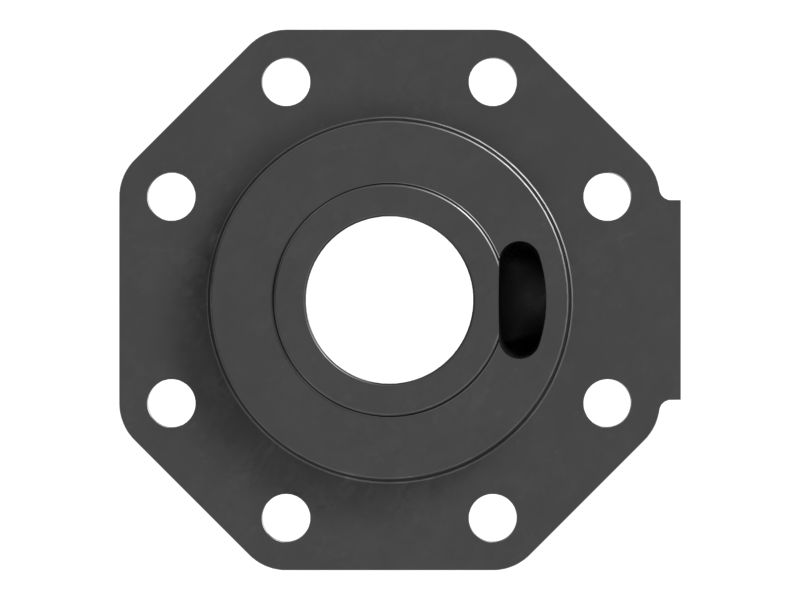

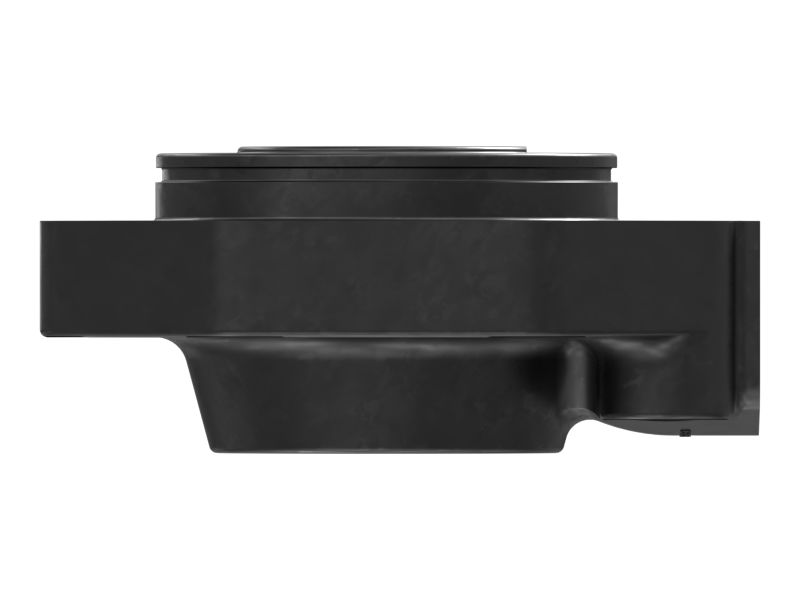

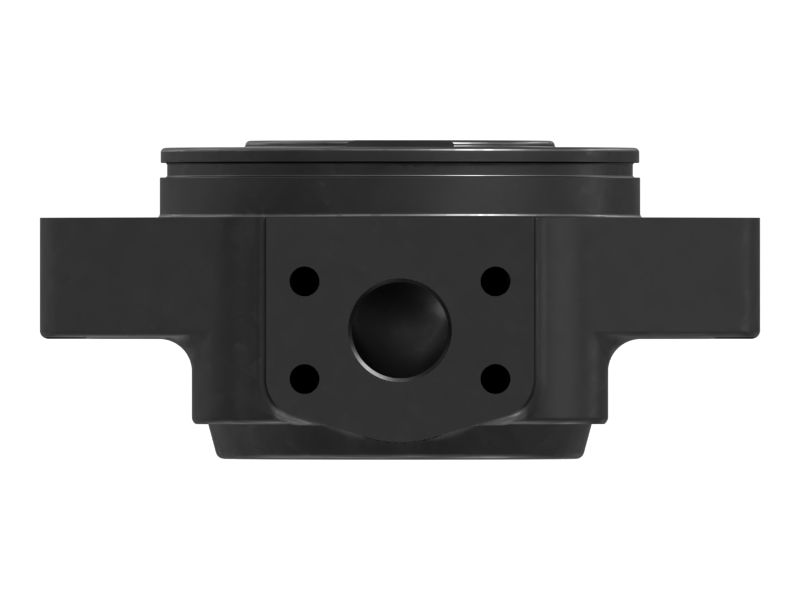

609-6945: Hydraulic Lift Cylinder Head

Product Photos

609-6945: Hydraulic Lift Cylinder Head 6096945 buy
Price ¥15754
Lead Time 5 days
Availability:ChinaRest

Key Details

OEM / Part No.609-6945
ManufacturerCaterpillar
CategoryOther Cylinder Components
Country of OriginOrigin on request
Weight26.2 kg
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

609-6945 Caterpillar Hydraulic Lift Cylinder Head is made of Ductile (Spheroidal) Iron,Ductile Iron Casting. The specified material for this part is Ductile (Spheroidal) Iron,Ductile Iron Casting.

Specifications

Groove Width A (in)0,22
Inner Diameter (in)3,45
Groove Width A (mm)5,61
Weight (kg)24,01
Weight Lb52,63
Inner Diameter (mm)87,63
Hole Size (in)0,945, 1,496
Internal Thread1/4 дюйма-20-2B, 1/2 дюйма-13-2B
Hole Size (mm)24, 38
MaterialПластичный (с шаровидным графитом) чугун,Литой пластичный чугун

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.

Compatible Models

Load Haul DumpR1300G
