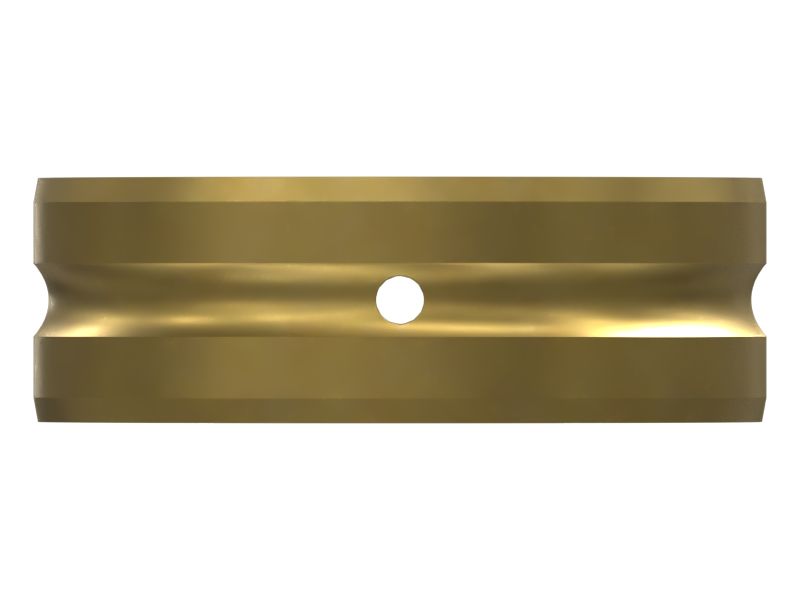

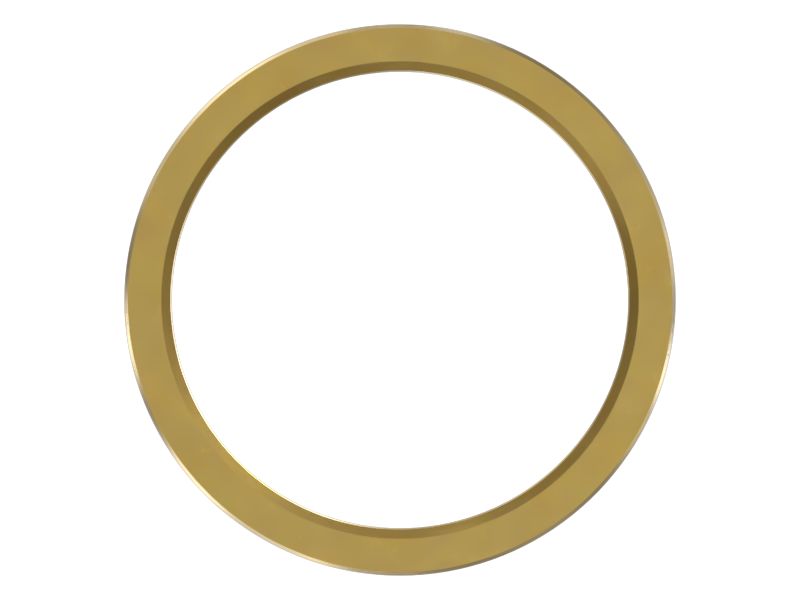

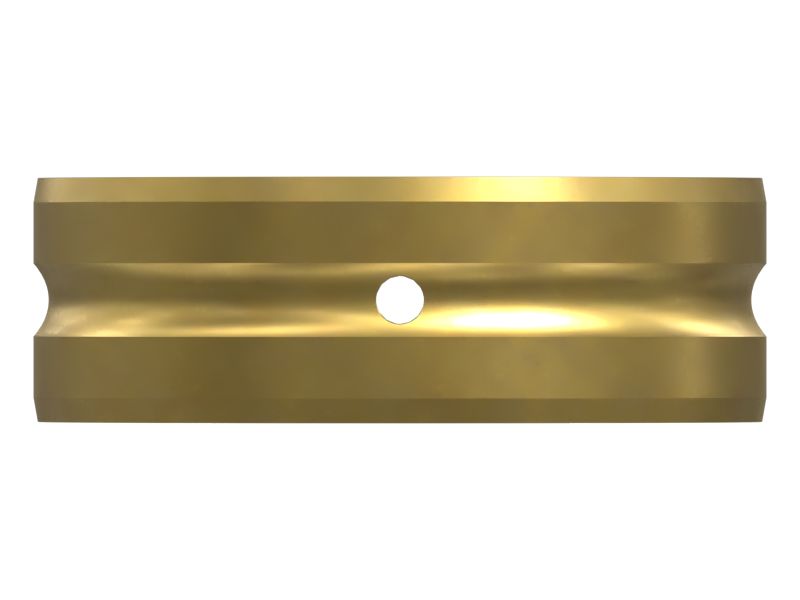

631-6836: Hydraulic Cylinder Sleeve Bearing

Product Photos

631-6836: Hydraulic Cylinder Sleeve Bearing 6316836 buy
Price ¥873
Lead Time 5 days
Availability:ChinaRest

Key Details

OEM / Part No.631-6836
ManufacturerCaterpillar
CategorySleeves
Country of OriginOrigin on request
Weight0.1 kg
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

631-6836 Caterpillar Hydraulic Cylinder Sleeve Bearing is made of Manganese Bronze Brass,Brass Casting. The specified material for this part is Manganese Bronze Brass,Brass Casting.

Specifications

Inner Diameter (mm)50,14
Inner Diameter (in)1,97
Outer Diameter (mm)60,16
Outer Diameter (in)2,37
Width (mm)30,0
Width (in)1,18
Hole Size (mm)4
Hole Size (in)0,16
Weight (kg)0,12
Weight Lb0,26
MaterialЛатунная отливка,Марганцевая бронза Латунь
Sleeve Outside Diameter (in)2,369
Sleeve Outside Diameter (mm)60,162
Overall Length (mm)20,0
Overall Length (in)0,787
Cross HolesYes
Sleeve Inside Diameter (in)1.974
Unique FeaturesNo
Sleeve Inside Diameter (mm)50.144

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.

Compatible Models

Погрузчик с телескопической стрелойTH1055, TH1255, TH0642, TH0842
