637-9680: M12-1.75 35mm Hex Head Self Lock Bolt

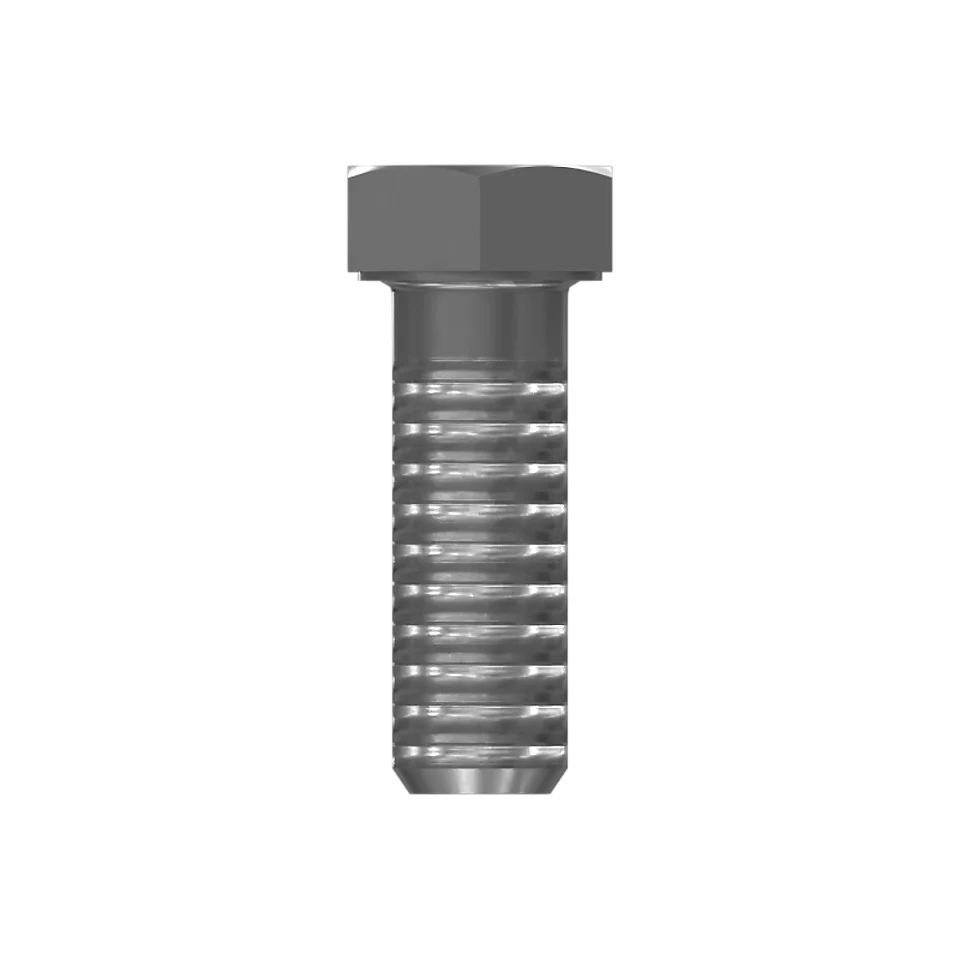

Product Photos

637-9680: M12-1.75 35mm Hex Head Self Lock Bolt 6379680 buy
Price ¥15
Lead Time 35 days
Availability:ChinaRest

Key Details

OEM / Part No.637-9680
ManufacturerCaterpillar
CategoryБез категории
Country of OriginOrigin on request
Weight0.01 kg
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

637-9680 Caterpillar M12-1.75 35mm Hex Head Self Lock Bolt is made of Nylon, 6, 6/12, 6/6 Plastic,Alloy Zinc,Low Alloy Steel,Steel. The specified material for this part is Nylon, 6, 6/12, 6/6 Plastic,Alloy Zinc,Low Alloy Steel,Steel.

Specifications

Head Length (mm)7,79
Head Length (in)0,31
Hex Size (mm)18,0
Hex Size (in)0,71
Overall Length (mm)42,79
Overall Length (in)1,69
Thread Length (mm)29,75
Thread Length (in)1,17
Head TypeШестигранная головка
Bolt Length (mm)35,0
Bolt Length (in)1.378
ThreadM12x1.75
Weight (kg)0,05
Weight Lb0,1
MaterialНейлон, 6, 6/12, 6/6 Пластик,Сплав цинка,Cталь,Низколегированная Cталь
Grip Length (mm)5,25
CoatingЦинк-ламельное чернение
Locking FeatureНейлоновая накладка
Class Or GradeISO 898-1 класс 10.9
Hand Of ThreadПравые
Thread Size Dia X Pitch (mm)M12x1.75
Bolt TypeШестигранная головка
Grip Length (in)0,207
Thread Size (in)0
Thread Size (mm)M12

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

This page is ready for discovery and quote requests; commercial terms are confirmed by a manager.

Compatible Models

Wheel Loader962, 950
