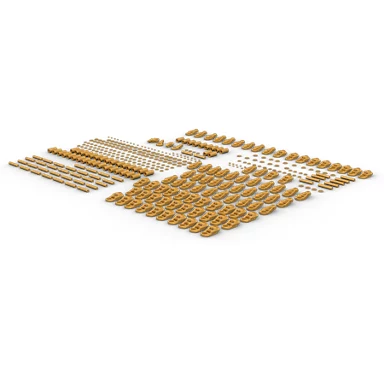

664-8617: 43 Joint General Duty Sealed And Lubricated Track

Product Photos

664-8617: 43 Joint General Duty Sealed And Lubricated Track 6648617 buy
Price ¥49683
Lead Time 90 days
Availability:ChinaRest

Key Details

OEM / Part No.664-8617
ManufacturerCaterpillar
CategoryLink Assemblies
Country of OriginOrigin on request
Weight949.2 kg
Dimensions—
Unit of Measurepcs
ConditionNew original part

Product Description

664-8617 Caterpillar 43 Joint General Duty Sealed And Lubricated Track is listed in the Link Assemblies category. Use the exact part number to verify fitment, specifications, and current availability before ordering.

Specifications

Link Inside Spread Sprocket (in)3.827
Rotating Bushing Track (rbt)No
Pin Retention SystemPress Fit
Rail To Bushing OD (mm)41.8
Uc SystemGD
Link Inside Spread Roller (in)4.283
Shoe Bolt Hole Spacing B146.1
Rail To Bushing OD (in)1.646
Shoe Bolt Hole Spacing C204.1
Link Inside Spread Roller (mm)108.8
Link Height (mm)139.9
Shoe Bolt Hole Spacing A (in)2.48
Number Of Sections43
Shoe Bolt Hole Spacing A63
Shoe Bolt Hole Spacing B (in)5.752
Link Outside Spread (in)7.917
Bushing OD (in)3.117
Bushing OD (mm)79.16
Bolt Hole Diameter (in)0.914
Grease Track TypeNot Applicable
Link Inside Spread Sprocket (mm)97.2
Link Outside Spread (mm)201.1
Seal And Lube TypeSALT
Bolt Hole Diameter (mm)23.22
Master Link Type5 Tooth Master
Track Pitch (mm)215,9
Rail To Pin Boss OD (mm)48.2
Track Pitch (in)8,5
Rail To Pin Boss OD (in)1.898
Track Bolt Thread0.875
Pin Length (in)10.866
Shoe Bolt Hole Spacing C (in)8.035

Delivery & Payment

Отгрузка

Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.

Оплата

Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.

Warranty

Warranty and delivery terms are confirmed on request.
