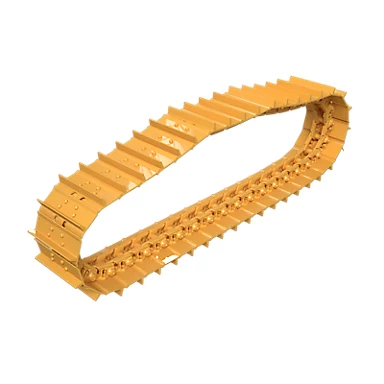

664-8619: 40 Joint General Duty Sealed And Lubricated Track
Product Photos
Price
¥78344
Lead Time
90 days
Availability:ChinaRest
Key Details
| OEM / Part No. | 664-8619 |
|---|---|
| Manufacturer | Caterpillar |
| Category | Track Groups |
| Country of Origin | Origin on request |
| Weight | 1881.3 kg |
| Dimensions | — |
| Unit of Measure | pcs |
| Condition | New original part |
Product Description
664-8619 Caterpillar 40 Joint General Duty Sealed And Lubricated Track is listed in the Track Groups category. Use the exact part number to verify fitment, specifications, and current availability before ordering.
Specifications
| Link Inside Spread Sprocket (in) | 3.827 |
|---|---|
| Track Shoe Hole Type | Not Applicable |
| Shoe Width (mm) | 610,0 |
| Rotating Bushing Track (rbt) | No |
| Pin Retention System | Press Fit |
| Uc System | GD |
| Arm | No |
| Shoe Width (in) | 24,016 |
| Number Of Sections | 40 |
| Grease Track Type | Not Applicable |
| Link Inside Spread Sprocket (mm) | 97.2 |
| Bushing Inside Diameter (in) | 3.117 |
| Seal And Lube Type | SALT |
| Shoe Type | Ms |
| Bushing Inside Diameter (mm) | 79.16 |
| Master Link Type | 5 Tooth Master |
| Track Pitch (mm) | 215,9 |
| Track Pitch (in) | 8,5 |
| Offset | Not Applicable |
| Track Bolt Thread | 0.875 |
| Number Of Grousers | Single |
| Clipped | No |
| Wear Sensor | Yes |
| Track Stiffening System | Not Applicable |
| Master Bolt Thread | 0.875 |
Delivery & Payment
Отгрузка
Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.
Оплата
Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.
Warranty
Warranty and delivery terms are confirmed on request.
