9X-2119: 7/8''-9 X 2 1/2'' 12-point Head Bolt

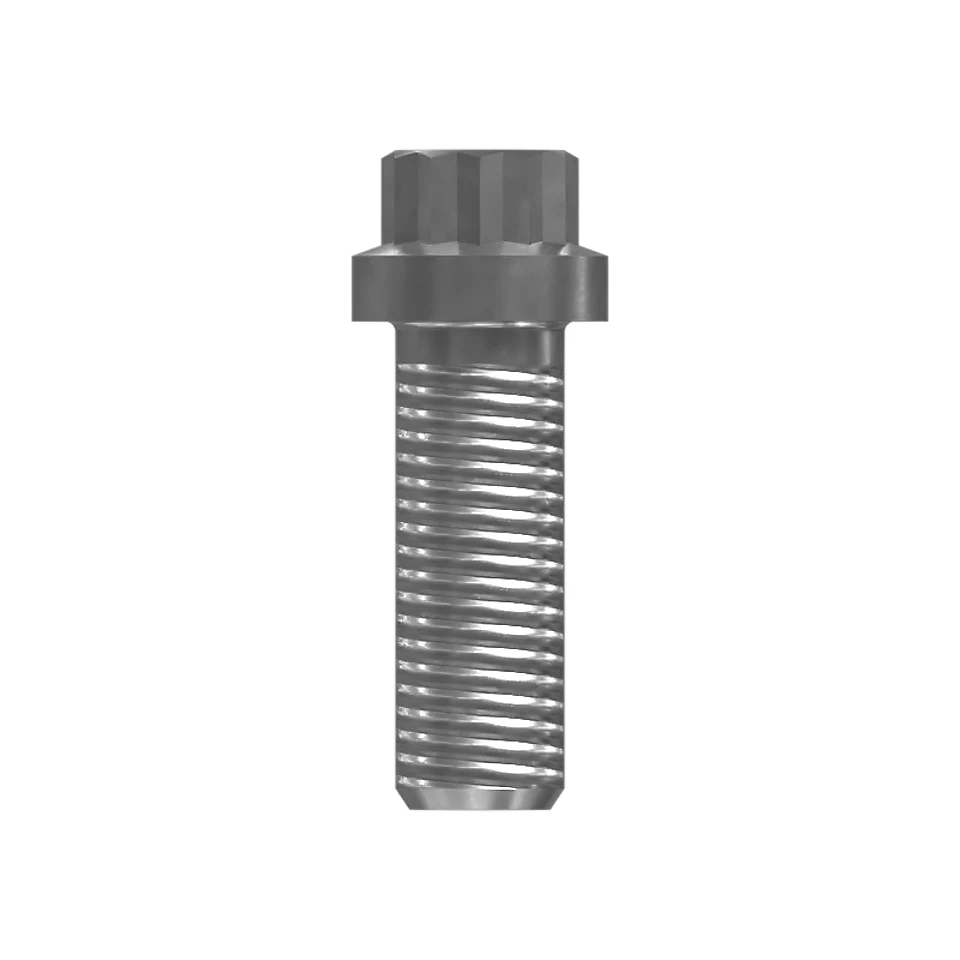

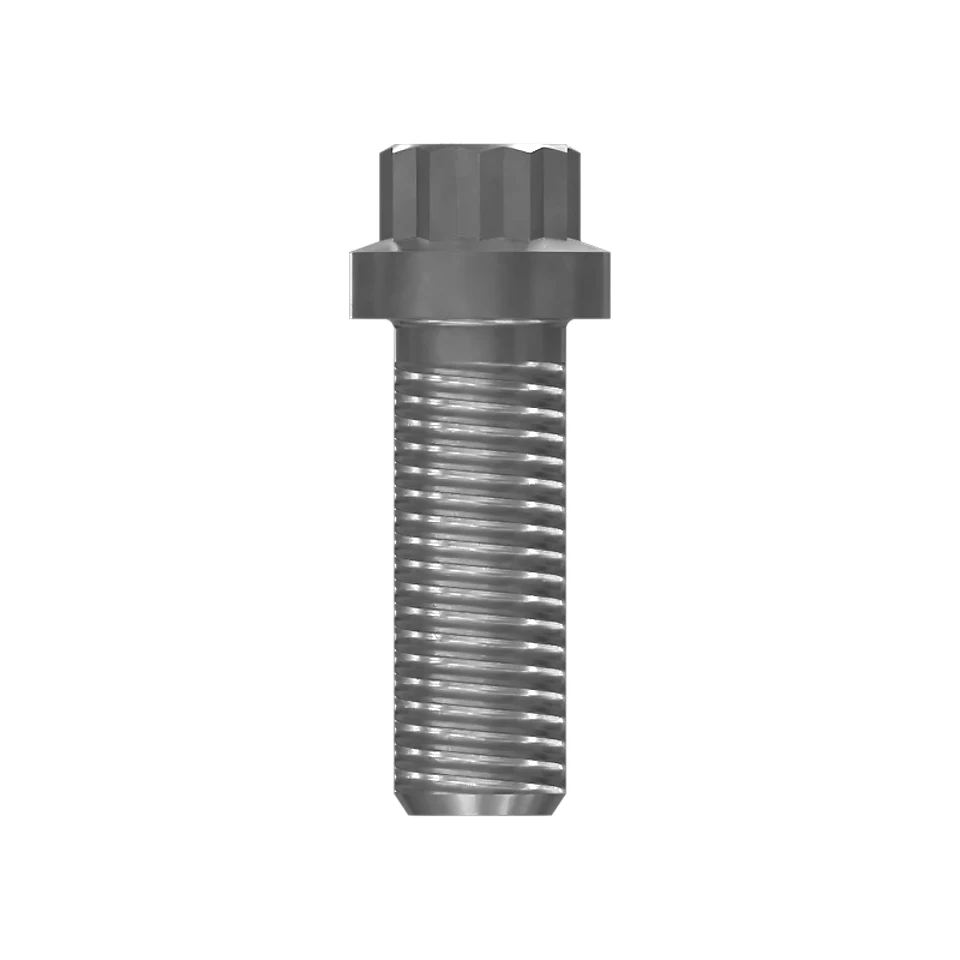

Product Photos
Price
¥418
Lead Time
5 days
Availability:ChinaRest
Key Details
| OEM / Part No. | 9X-2119 |
|---|---|
| Manufacturer | Caterpillar |
| Category | Fasteners |
| Country of Origin | Origin on request |
| Weight | 0.3 kg |
| Dimensions | — |
| Unit of Measure | pcs |
| Condition | New original part |
Product Description
9X-2119 Caterpillar 7/8''-9 X 2 1/2'' 12-point Head Bolt is made of STEEL,Carbon Steel,Alloy Zinc,Corrosion Preventative Fluid. The specified material for this part is STEEL,Carbon Steel,Alloy Zinc,Corrosion Preventative Fluid.
Specifications
| Bolt Length (in) | 2.5 |
|---|---|
| Material | СТАЛЬ,Антикоррозионная жидкость,Углеродистая сталь,Цинковый сплав |
| Bolt Length (mm) | 63,5 |
| Bolt Type | 12 Point Head |
| Coating | Zinc Flake |
| Grip Length (in) | 0,22 |
| Grip Length (mm) | 5,6 |
| Flange Diameter (in) | 1,31 |
| Thread Size (in) | 0.034 |
| Thread Size (mm) | 0.875 |
| Thread Size Dia X Pitch (mm) | 7/8x9 |
| Class Or Grade | Cat/ASTM F2882 (170 ksi) |
| Hand Of Thread | RH |
| Locking Feature | None |
Delivery & Payment
Отгрузка
Pickup from the supplier's warehouse in Shenzhen, China, or in Moscow, Russia.
Оплата
Payment in Chinese yuan (CNY) to our company bank account in China, or in Russian rubles (RUB) to the Russian company bank account.
Warranty
Warranty and delivery terms are confirmed on request.
Compatible Models
Судовой двигатель3512, 3412C, 3508B, 3516B, 3512B
Газовый двигательG3512E, G3516E, G3516C, G3512, G3516, G3508
Engine - Industrial3516B, 3561B
EngineG3516C
Генераторная установка для нефтяной промышленностиC18, 3512C
Генераторные установки3508, G3516, G3512, CG137-12, 3406C, G3508, G3516B, G3516C, G3516E, G3520C, 3508C, G3512E, G3520B, 3516, 3516C, C18, G3520E, 3516B, C15, 3508B, 3512, G3412, 3512C, 3512B
Двигатель комплекта генератора3508, 3412, 3456, G3516, G3512, 3512, 3512B, 3508B, 3516, 3516B, G3516B
Power ModuleXQG400, PM3516, PM3412
Challenger75C
Вспомогательное судовое оборудование3512C, 3512B, 3508B, 3516B
Industrial Engine3512B, 3512C, 3516B, 3508, 3512, 3516
Oil and Gas Engine3508C, 3516C, 3512C
ГенераторSR4, SR4B, SR4BHV
